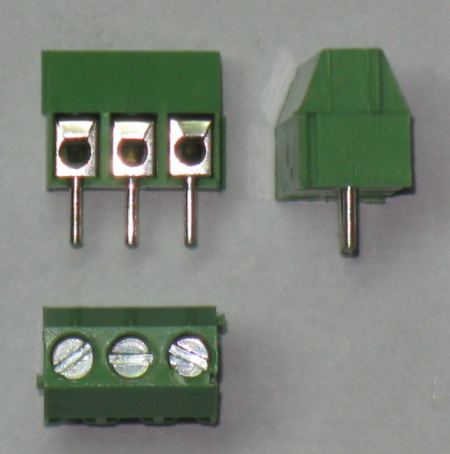

Modell:wj350-35-3
Passar ihop med modell:
wj350-35-2
Tekniska data
Material
Screws: M2 steel Zinc plated
Wire guard: Phosphor bronze, Ni plated
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
Electrical
Rated voltage: 125V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 24-18AWG 1.0MM2
Mechanical
Temp. Range: -40℃~ +105℃
MAX Soldering: +250℃, for 5 Sec.
Torque: 0.2Nm(1.7b.in)
Strip length: 4.5-5mm
